The European Standard EN 1015 defines two reference methods for the determination of particle size distribution of dry mortar mixtures or fresh mortar. According to these specifications, mortar with normal aggregates are to be inspected via wet sieving while mortar with lightweight aggregates can be analyzed via dry sieving. As specified in EN 1015, the testing setup shall include eight laboratory test sieves with square apertures or wire mesh as well as a suitable collecting pan and sieve lid. [EN 1015: Methods of test for mortar for masonry - Part 1: Determination of particle size distribution (by sieve analysis)]

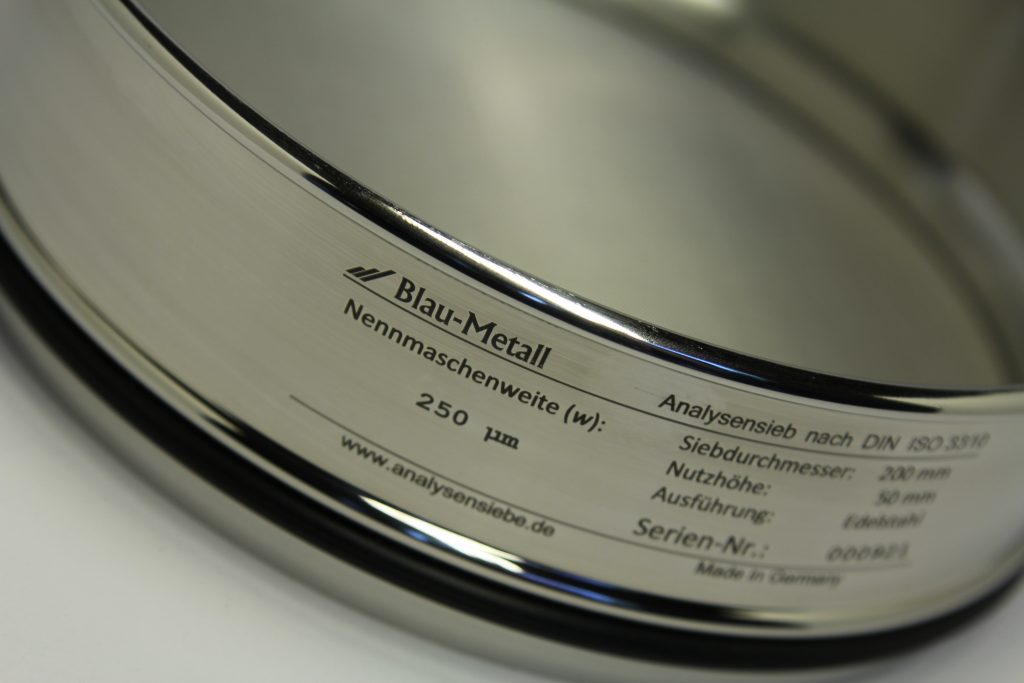

Blau-Metall laboratory test sieves in accordance with ISO 3310-1/2 comply with all requirements of EN 1015 for wet and dry sieving of mortar products. Our rigorous optical inspection protocol ensures our sieves meet all requirements of ISO 3310 and deliver a statistically sound screening result.

Test Sieves for Mortar according to EN 1015


Stainless Steel, Diameter: 200 mm, Standard Delivery Time: 10 Days

Article Standard €/Pcs. ↕ 32 mm €/Pcs. ↕ 50 mm
Sieve Lid 36,85 36,85
Test Sieve (Square Apertures) 8,0 mm DIN ISO 3310-2 103,00 105,00
Test Sieve (Square Apertures) 4,0 mm DIN ISO 3310-2 103,00 105,00
Woven Wire Cloth Sieve 2,0 mm DIN ISO 3310-1 72,50 74,00
Woven Wire Cloth Sieve 1,0 mm DIN ISO 3310-1 72,50 74,00
Woven Wire Cloth Sieve 500 µm DIN ISO 3310-1 70,00 71,50
Woven Wire Cloth Sieve 250 µm DIN ISO 3310-1 70,00 71,50
Woven Wire Cloth Sieve 125 µm DIN ISO 3310-1 70,00 71,50
Collecting Pan 34,90 40,00
